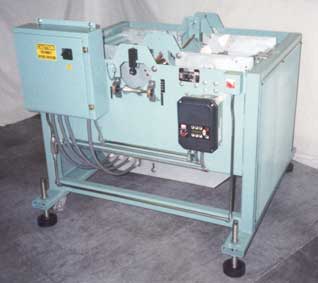

Pipe Perforators
NMC provides pipe perforators used
throughout the industry. Our perforators accommodate pipe from three to
six inches in diameter at an extrusion rate of up to 30 feet per
minute. Three holes can be drilled at a spacing of five inches. |
|
Features & Benefits
- Handles 3"-6" pipe
- Three drills per row
- 5" hole spacing (center to
center)
- Chuck Capacity 1/2", 5/8",
or 3/4"
- Max line rate: approx 30 ft./minute
Specifications
| Model |
Rows of
Holes |
Location
of Holes |
| D3 |
2 |
4, 8 o'clock |
| D3/3-60 |
3 |
4, 6, 8 o'clock |
| D3/3-120 |
3 |
4, 8, 12 o'clock |
|
|
|
