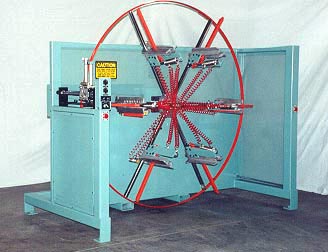

CQL78 Single Reel Coiler

For 0.5" through 2.0" diameter pipe and tubing
NMC Single Reel Coilers provide controlled take-up of extruded pipe and tubing.  A rugged AC drive provides full torque and speed control. Single reel coilers are equipped with quick-dump side arms for easy coil removal and an air-actuated pipe clamp which releases automatically. Optional level winders are available.
Features & Benefits:
  • Torque and Speed Controlled AC Drive
  • Quick-Dump Side Arms for Easy Coil Removal
  • Air-Actuated Pipe Clamp with Automatic Release

    Optional Feature:
    Level Wind

Specifications For CQ Series

Model Maximum O.D. I.D. Width Max. Stack Height Pipe Size
CQ48 48" 24"-32"
2" increments
14" 8" 1/2"-1"
CQ78 78" 24"-48"
2" increments
14" 15" 1/2"-1-1/2"
CQ90 90" 30"-60"
2" increments
14" 15" 1"-2"
CQW90 90" 30"-60"
2" increments
26" 15" 1"-2"
